Container Haul Skeleton Trailer

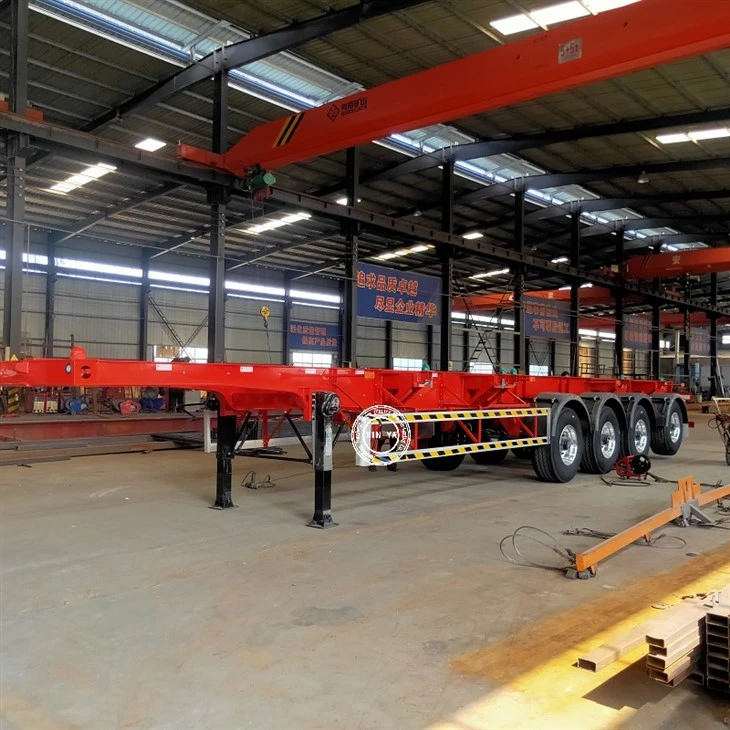

4 Axle 40ft Container Haul Skeleton Semi Trailer
Dimensions：12500 × 2500 × 1550 mm
Load capacity：52.8-53.2 ton
Tare weight：6.8-7.2 Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of container haul skeleton trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved container haul skeleton trailer, welcome to get quotation from our factory.
Product Details
Container Haul Skeleton Trailer It is open‑frame skeletal chassis, specially built for ISO container haulage. No solid floor deck. Equipped with ISO standard twist‑locks to fasten container corner castings. Light tare weight for higher payload, widely used in port, yard and intermodal transport.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12500 × 2500 × 1550 mm |
|
Material |
Q345B fabricated carbon steel |
|
Twist lock |
12 units |
|
Main beam |
Material: Q345; Type: Straight Beam; Height: 500mm; Top Plate: 14mm; Bottom Plate: 16mm; Vertical Plate: 8mm; Process: Automatic Submerged Arc Welding |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; |
|
King pin |
2"(50mm) bolt‑in type; 3.5" optional |
|
brake system |
Brand: XINYA factory configuration Type: Dual line braking system Brake air chamber: 4 in total, T30/30*2 + T30*2 Air tank: 40L*1 unit ABS: None |
|
Suspension |
Mechanical leaf‑spring suspension (air suspension optional) |
| Tire | 16 pcs, 12R22.5 (Triangle / Linglong optional) |
| Rim | 16pcs,9.00‑22.5 |
|
Axle |
Brand: XINYA (FUWA / BPW optional) QTY: 4 pcs ×13T axle |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our company is located in the Yuncheng trailer industry cluster, with centralized procurement of steel, axles, and accessories. The cost of raw materials is low, and the quotation for the same configuration is better than the industry average price.
Our Advantages
Four‑axle heavy‑duty configuration, rational load distribution, adapt to heavy‑load rough‑road working condition.
Q345B high‑tensile steel main beam, strong torsion‑resistance, long service life.
Multi‑sets ISO twist‑locks, support 40ft /double‑20ft container inter‑modal transport.
Open‑skeleton design, low tare weight, maximize effective payload.
Mature dual‑line air brake system, stable braking performance for heavy haulage.
FAQ
Q: What about anti corrosion paint treatment?
A: Full sand blasting treatment, zinc rich primer plus two topcoats. Custom color is acceptable.
Q: What accessories are included as standard?
A: Tool box, spare tire carrier, one spare tire, complete 24V LED lamp set.
Q: What is production lead time after deposit?
A: Normally 20-30 working days. Urgent order is negotiable.
Q: Can you adjust dimensions for my local road regulations?
A: Yes. We can adjust overall width, lighting, brake configuration to match local road requirements. Please provide your local regulation documents.
