Port Haulage Skeleton Semi Trailer

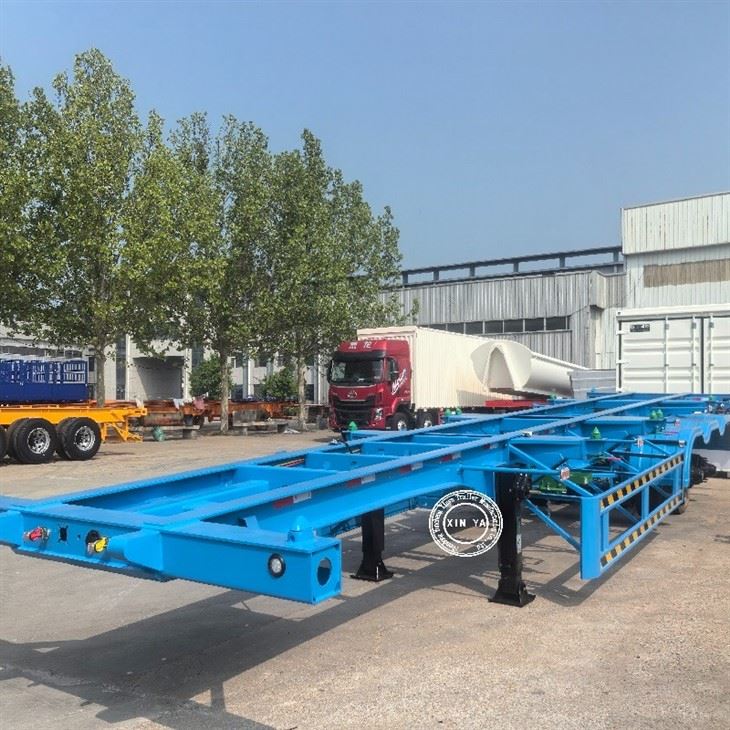

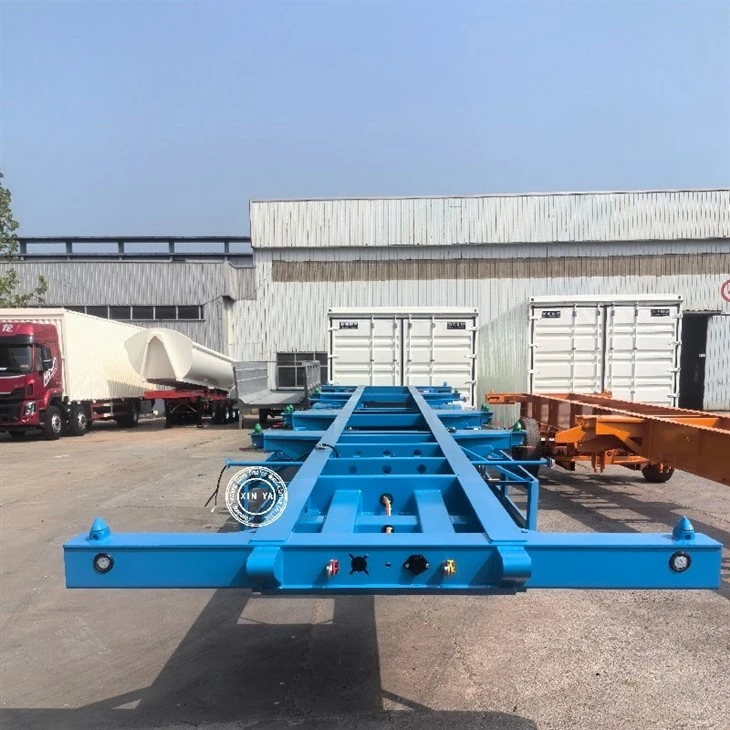

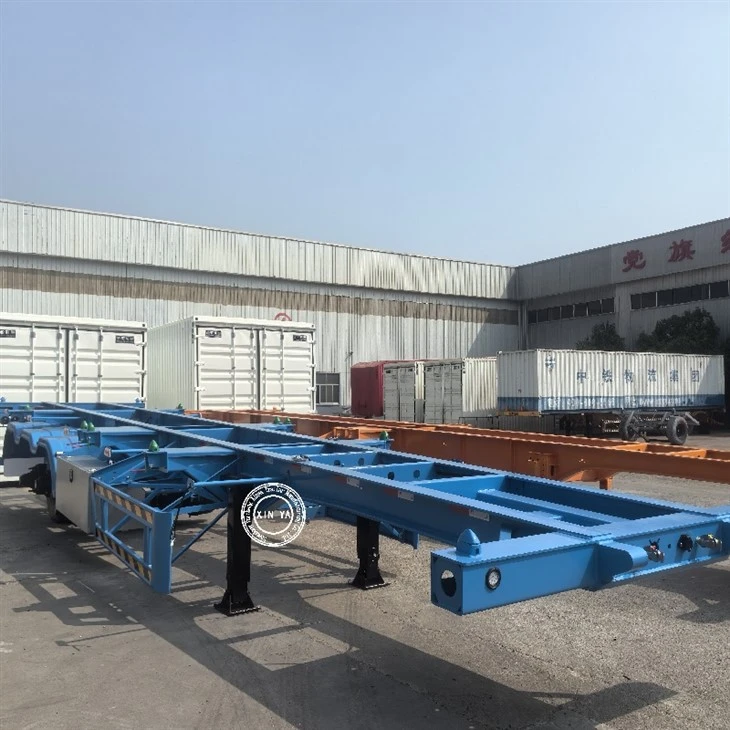

40ft 3 Axle Port Haulage Skeleton Semi Trailer
Dimensions：12400×2480×1550 mm
Load capacity：40 ton
Tare weight：5.6-6.0Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of port haulage skeleton semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved port haulage skeleton semi trailer, welcome to get quotation from our factory.
Product Details
This 40ft 3‑Axle Port Haulage Skeleton Semi‑Trailer,designed for port‑warehouse short‑haul transportation, also suitable for regional medium‑long distance container delivery.Reinforced frame structure, good performance under mixed road conditions, for heavy‑load containers & reefer containers.Light‑weight optimized skeleton chassis without deck plate, reduce tare weight.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12400×2480×1550 mm |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 500mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
Tyre |
12R22.5, 12 pcs |
|
Rim |
9.00‑22.5,12 pcs |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Mechanical leaf spring suspension(Air suspension optional) |
| King Pin | 3.5‑inch bolt‑in king pin(2‑inch optional) |
|
Axle |
Brand: XINYA/FUWA / local brand optional Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Xinya Trailer Manufacturing Co., Ltd was founded in 2010 in Yuncheng, Heze, Shandong, China. Our trailers sell well across China and export to Southeast & African countries, widely used in port shuttle, highway trunk logistics, cold chain & dangerous goods container transport. We provide personalized lightweight design, reliable spare parts and full after-sale service for global clients.
Our Advantages
This 40ft 3‑Axle Port Haulage Skeleton Semi‑Trailer,
- Higher loading capacity, excellent for heavy‑load & reefer containers. Evenly distributed axle‑load, comply with most local road regulations, lower over‑loading risk.
- Multi‑purpose design. Suitable for port‑warehouse short‑haul and regional medium‑long distance transport. Works well on paved roads and fair rough roads, no need for separate yard shunter.
- Higher driving stability. Three axles share the load, reduce wear of tires, axles and suspension. Lower breakdown rate & long‑term maintenance cost.
- Optimized lightweight skeleton without deck plate. Maximize available payload. Simple structure, easy inspection & daily maintenance.
FAQ
Q: What after-sales service is provided?
A: Provide whole vehicle warranty, spare parts supply and technical support.
Q: Is it applicable for multi-modal transport?
A: Fully applicable for port, highway and railway multi-modal transportation.
Q: Which countries can it be exported to?
A: Suitable for Africa, Southeast Asia, Middle East, South America and other markets with customized specs.
