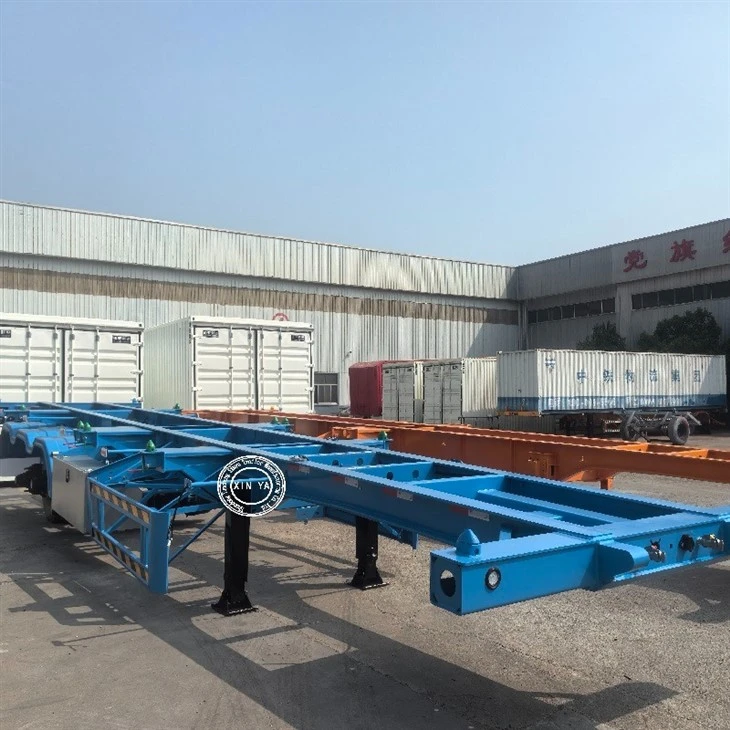

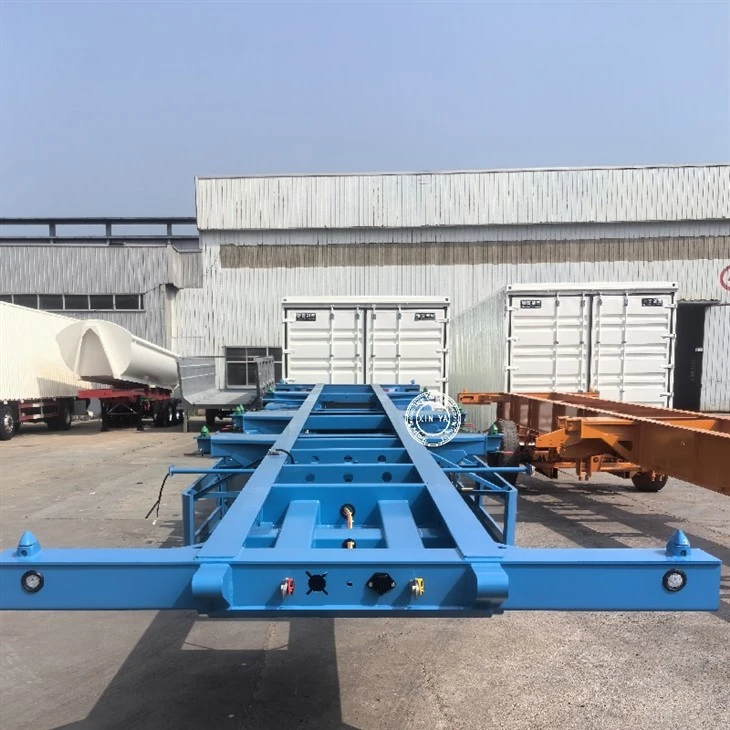

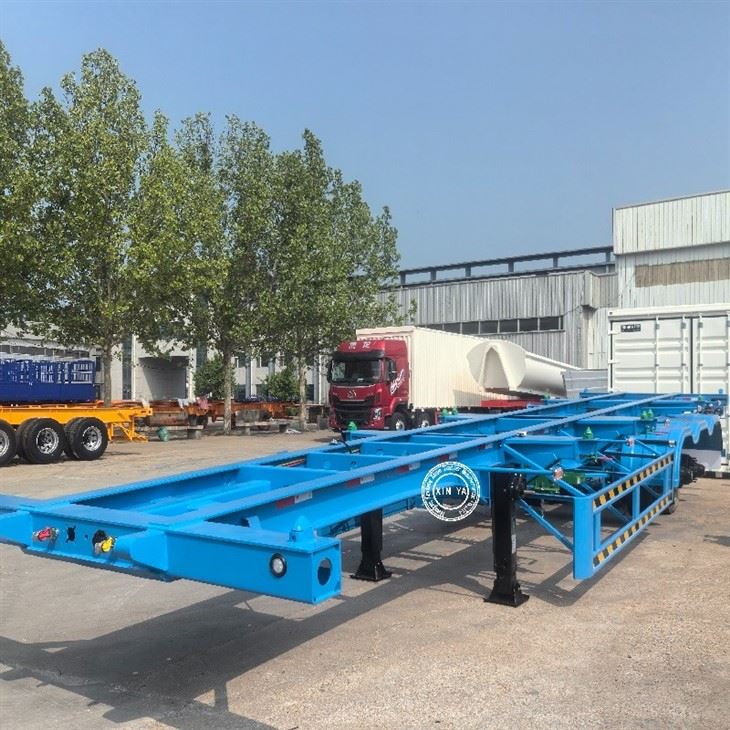

ISO Container Chassis Skeleton Trailer
Dimensions：12400 × 2500 × 1520 mm (customizable)
Load capacity：32 ton
Tare weight：4.8 Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of iso container chassis skeleton trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved iso container chassis skeleton trailer, welcome to get quotation from our factory.
Product Details
ISO container chassis skeleton trailer adopts hollow frame design without floor plate. The main beam is integrally welded by Q355B high tensile manganese steel. The cross-section of I-beam is stress optimized to sustain concentrated load of containers for long-term operation. 12 sets of ISO standard rotary twist locks are mounted on the chassis with precisely positioned lock seats matching container corner castings. It can flexibly carry one 40GP/40HQ container or two 20GP containers. The bolt-in kingpin design facilitates maintenance and replacement. Three axles fitted with leaf spring suspension provide stable shock absorption, suitable for unpaved road conditions in Africa. The whole trailer goes through sandblasting pretreatment and multi-layer anti-corrosion painting. Air tanks, toolbox are installed on chassis side. Tail lamps and reflective markers comply with cross-border road transport regulations, and the 24V electrical system ensures safe driving at night.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12400 × 2500 × 1520 mm |
|
Material |
Q355B fabricated carbon steel |
|
Main beam |
Height: 500mm; Top Plate: 14mm; Bottom Plate: 16mm; Vertical Plate: 8mm; Process: Automatic Submerged Arc Welding |
| Cross Member | 16#channel steel |
|
Plateform |
2-3mm checker plate |
|
Twist lock |
4 sets |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Drawbar pin |
2 inch standard, 3.5 inch optional, bolt-on type |
|
Suspension |
Mechanical suspension or Air suspension |
| Tyre | 12R22.5 / 315/80R22.5, total 12 pcs |
| Rim | 9.0-22.5, 12 pcs |
|
Axle |
Brand: XINYA factory configuration Capacity: 13T/16T QTY: 3 units |
Our Company
Our Advantages
Lighter tare weight: Hollow frame without floor greatly reduces dead weight. It helps raise actual cargo capacity within legal weight limit and improve revenue per trip.
High durability: Q355B manganese steel main beam features strong torsion resistance and anti-fatigue performance. Reinforced structure adapts to repeated hoisting at ports and long-distance bumpy transportation for longer service life.
Multi-purpose design: 12 twist locks support both 20ft and 40ft ISO containers. One trailer handles multiple container types so buyers do not need multiple units.
Easy maintenance: Modular assembly for kingpin, twist locks and axles. Spare parts are widely available in Africa, lowering repair cost and downtime.
Reliable braking & anti-corrosion: Standard dual-line air brake prevents skidding under heavy load. Sandblasting plus polyurethane topcoat resists rust in humid and salty port environment.
FAQ
Q: Can this skeleton trailer carry both 20ft and 40ft containers?
A: Yes. It is equipped with 12 sets ISO twist locks. It can load 1×40GP/40HQ or 2×20GP containers.
Q: What is the axle brand and load capacity?
A: Standard axle is 13 ton, optional FUWA, BPW or local brand. We can also upgrade to 16-ton heavy-duty axles.
Q: Is it suitable for rough road in Africa?
A: Yes. Leaf spring suspension is standard, stable and robust for unpaved roads. Air suspension is available as optional upgrade.
Q: What is the painting process and color options?
A: Sand blasting + primer + polyurethane topcoat. Available colors: yellow, blue, orange, black or customized.
Q: What certification can you provide?
A: We can offer ISO, CE, GCC certificate as customer request.
