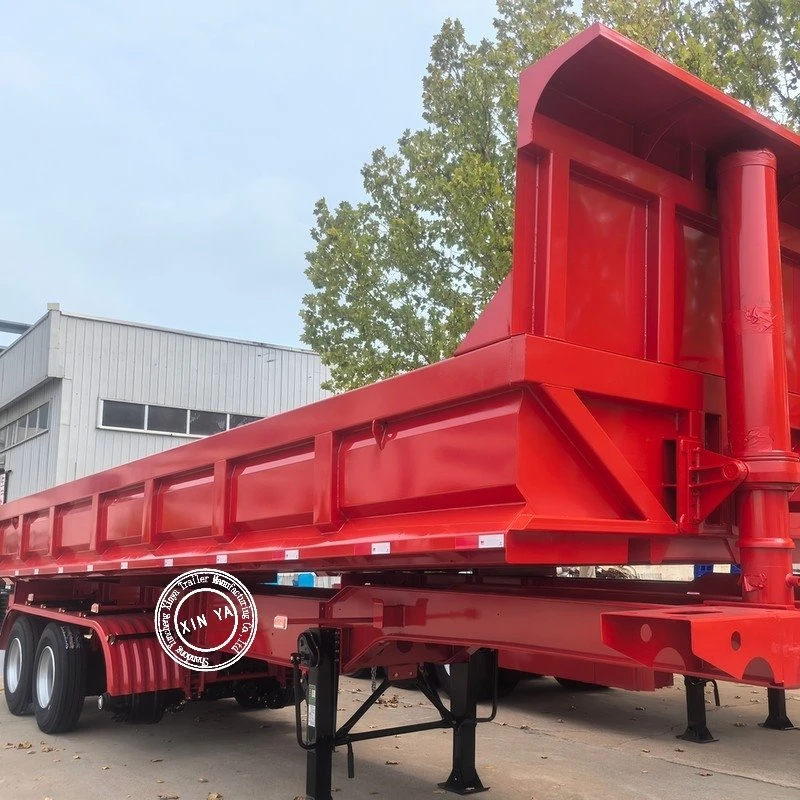

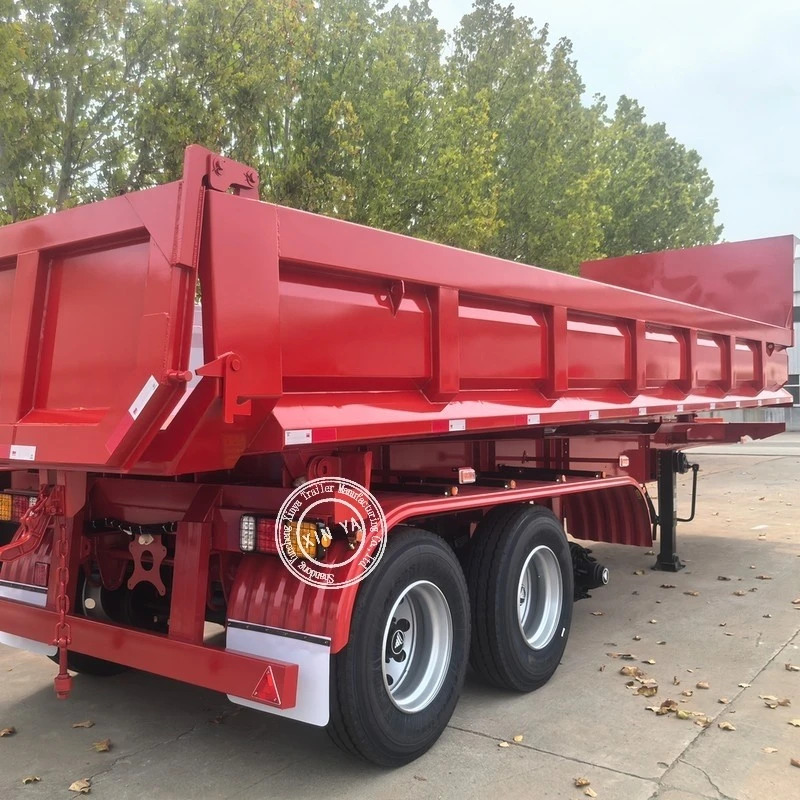

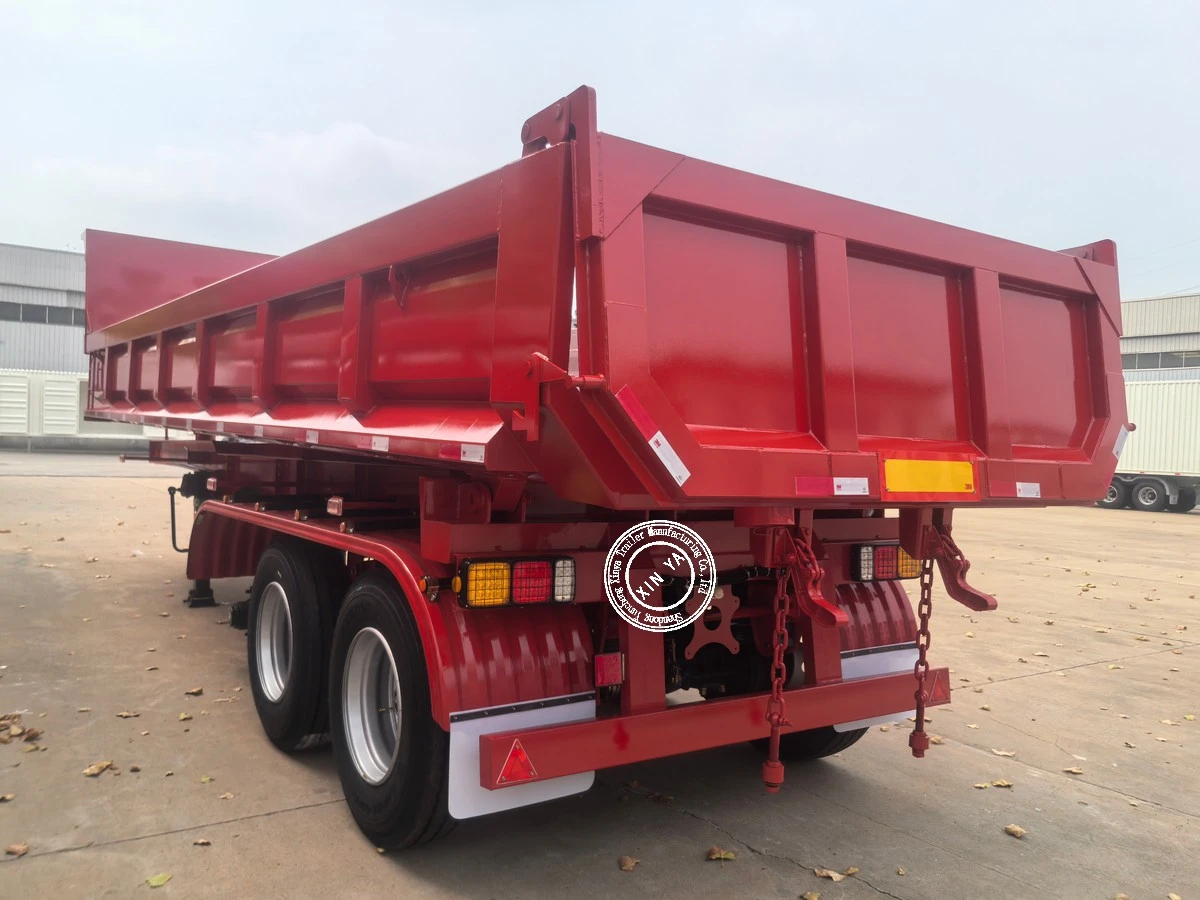

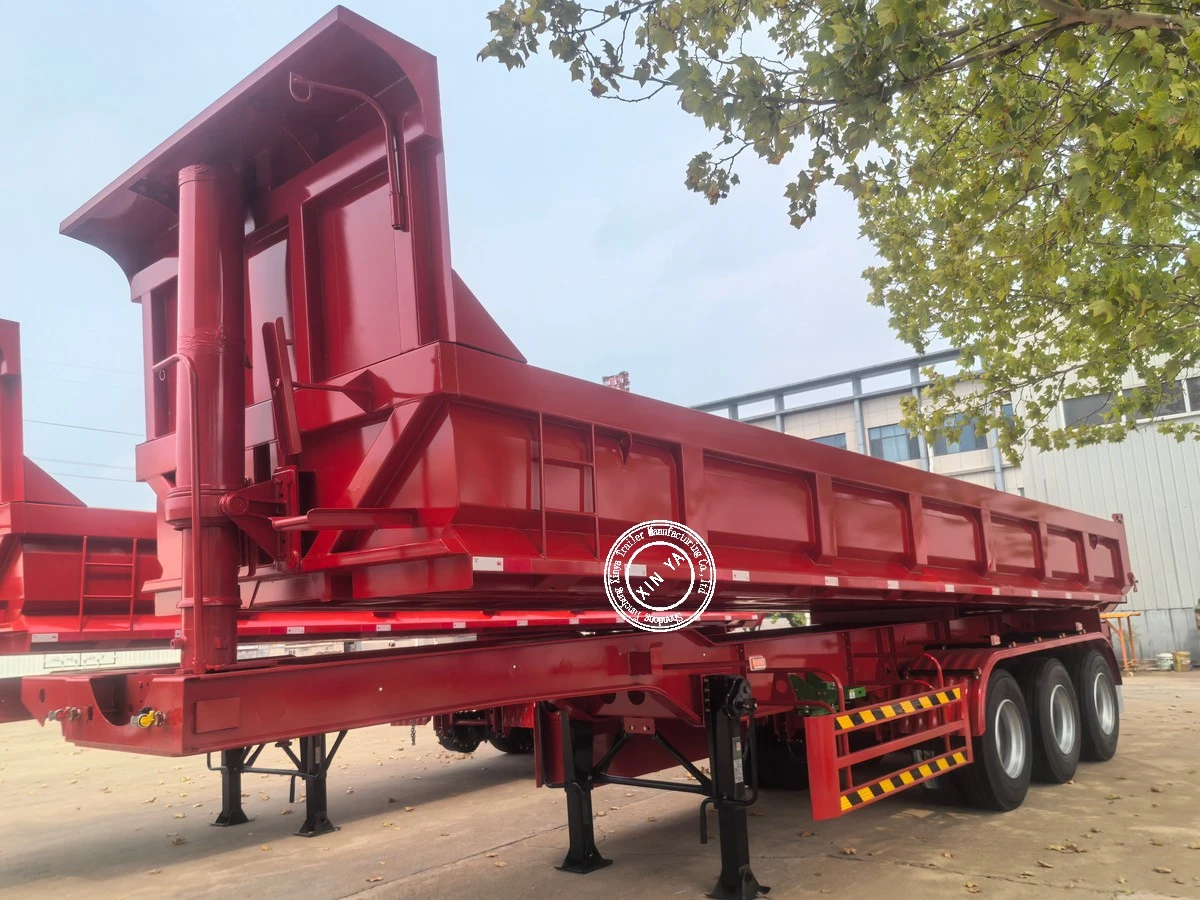

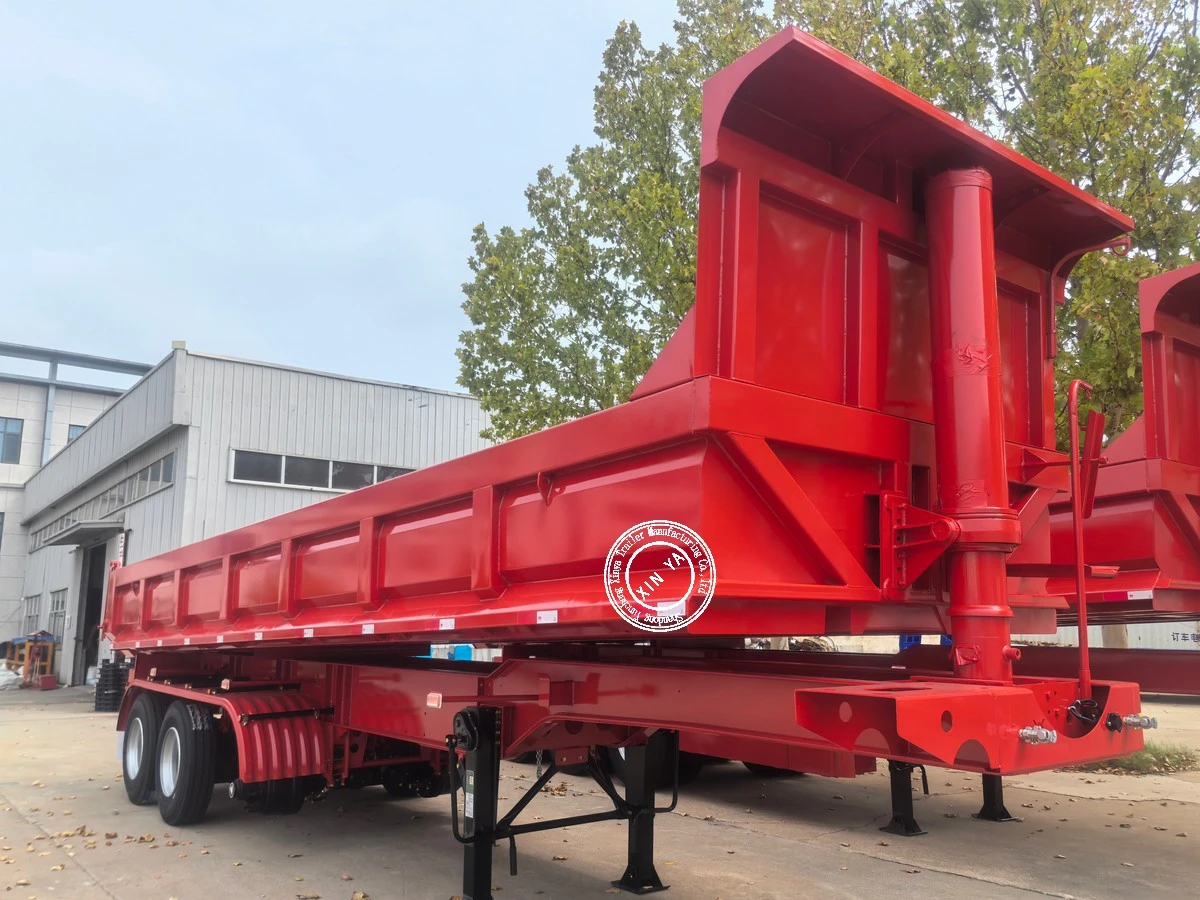

30CBM Dump Semi Trailer
Size: 10,300×2,500×3,360mm or customized
Tare weight: 9.5T
Payload: 40T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 30cbm dump semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 30cbm dump semi trailer, welcome to get quotation from our factory.
Product Details
The 3-axle 30CBM rear dump truck trailer is designed for transporting building materials such as soil, gravel or demolition waste, as well as coal.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
10300×2,500×3,360mm |
|
Material |
Q345B/T700 |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
plateform |
2-3mm checker plate |
|
King pin |
90# |
|
Twist lock |
12 units |
|
Tyre |
12R22.5 |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness);Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
Spring leaf |
90(W)mmx13(Thickness)mmx10 layers |
Our Company
Our company has strong export customization capabilities and can customize according to African/Middle Eastern road conditions: reinforced chassis, heavy-duty axles, lifting axles, wide tires, and high anti-corrosion; Support customization of axle load, size, color, and logo. Many standardized products in the industry are difficult to adapt to harsh road conditions overseas.
Our Advantages
1.Our prices are 10-15% cheaper than top tier manufacturers such as CIMC, and our quality is similar; It is 5-8% more expensive than small factories, but more durable, requires less maintenance, and has lower overall costs.
2.Provide English manuals, installation videos, and a list of vulnerable parts; Overseas customers can enjoy remote guidance and spare parts express delivery; 24-hour response domestically, with dedicated personnel following up on export orders.
3.The self weight is 300-500kg lighter than its peers, with a larger legal load capacity, higher shipping costs, and lower fuel consumption.
FAQ
1. Does multi-axle model meet export load limit?
A: Designed to meet load regulations of different countries.
2. Suitable for wet fine materials?
A: Yes, sealed body prevents material leakage.
3. What are wearing parts?
A: Seal strips, brake pads, bearings, hydraulic hoses, etc.
