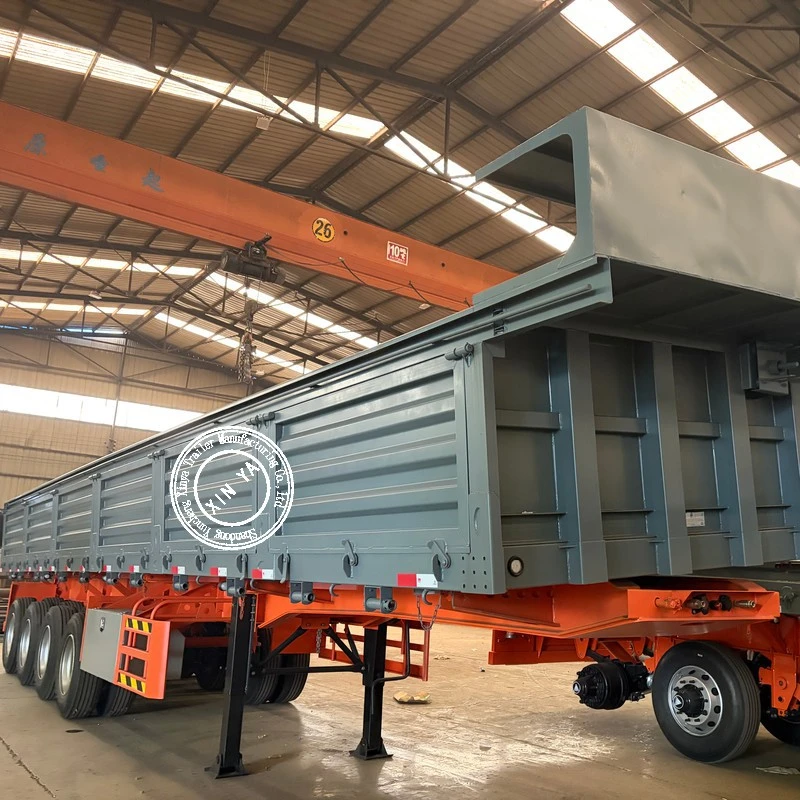

Side Tipper Semi Trailer
Size: 13000*2550*2900mm or customized
Tare weight: 6.5T
Payload: 35T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of side tipper semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved side tipper semi trailer, welcome to get quotation from our factory.
Product Details
4 axle side tipper semi-trailer The carriage of a semi-trailer can be overturned to the left or right for unloading as a whole; It looks like a regular high railing/standard box, with an additional set of hydraulic lifting and flipping supports underneath. The column can be disassembled/folded to avoid jamming when flipping over
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
13000*2550*2900mm |
|
Material |
Q345B |
|
Main beam |
Type: I-type; Height: 500mm; Upper plate: 8mm; Bottom plate: 10mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
plateform |
2-3mm checker plate |
|
Tyre |
12R22.5/14.00R24 |
|
steel ring |
9.0×22.5 |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
Our Company
Our company, Xinya Factory, has become a Chinese trailer industry enterprise with both technical strength and market reputation, thanks to over ten years of industry cultivation, advanced production equipment, strong research and development capabilities, strict quality control, and extensive market coverage.
Our Advantages
1.The safety configuration of the side tipper semi-trailer is complete: equipped with hydraulic explosion-proof valve, lifting limit, ABS brake, high-strength door locking mechanism, and strong stability during lifting, driving, and unloading processes.
2.Faster unloading speed, single-sided dumping, suitable for continuous unloading in assembly lines.
3.The interior space of the carriage is more organized, and the utilization rate of loading capacity is high.
FAQ
1. What road conditions is it suitable for?
A: Highway, construction site, mining area and rough roads.
2. Can color and logo be customized?
A: Yes, spraying as per customer's requirement.
3. What steel material is used?
A: Main frame Q345B/T700 high strength steel, wear-resistant steel for cargo body.
