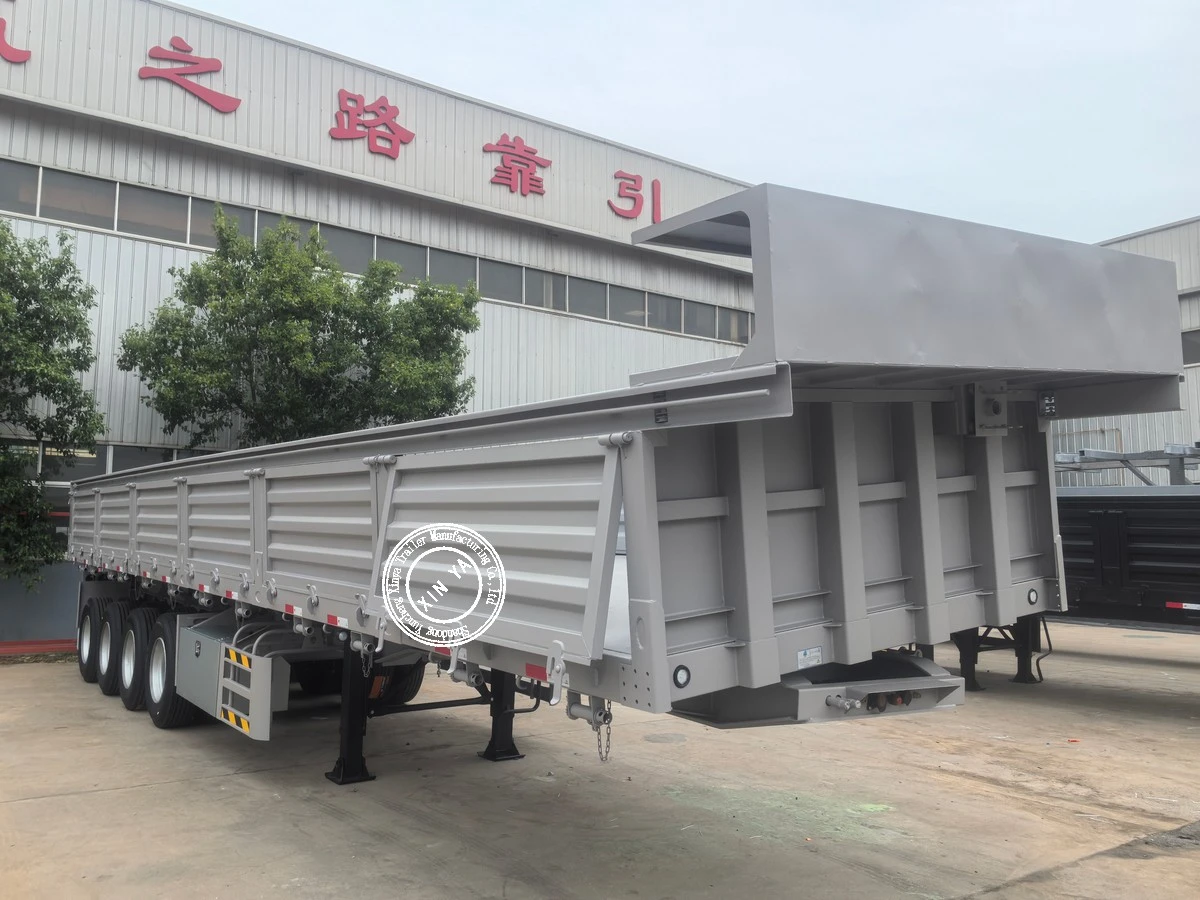

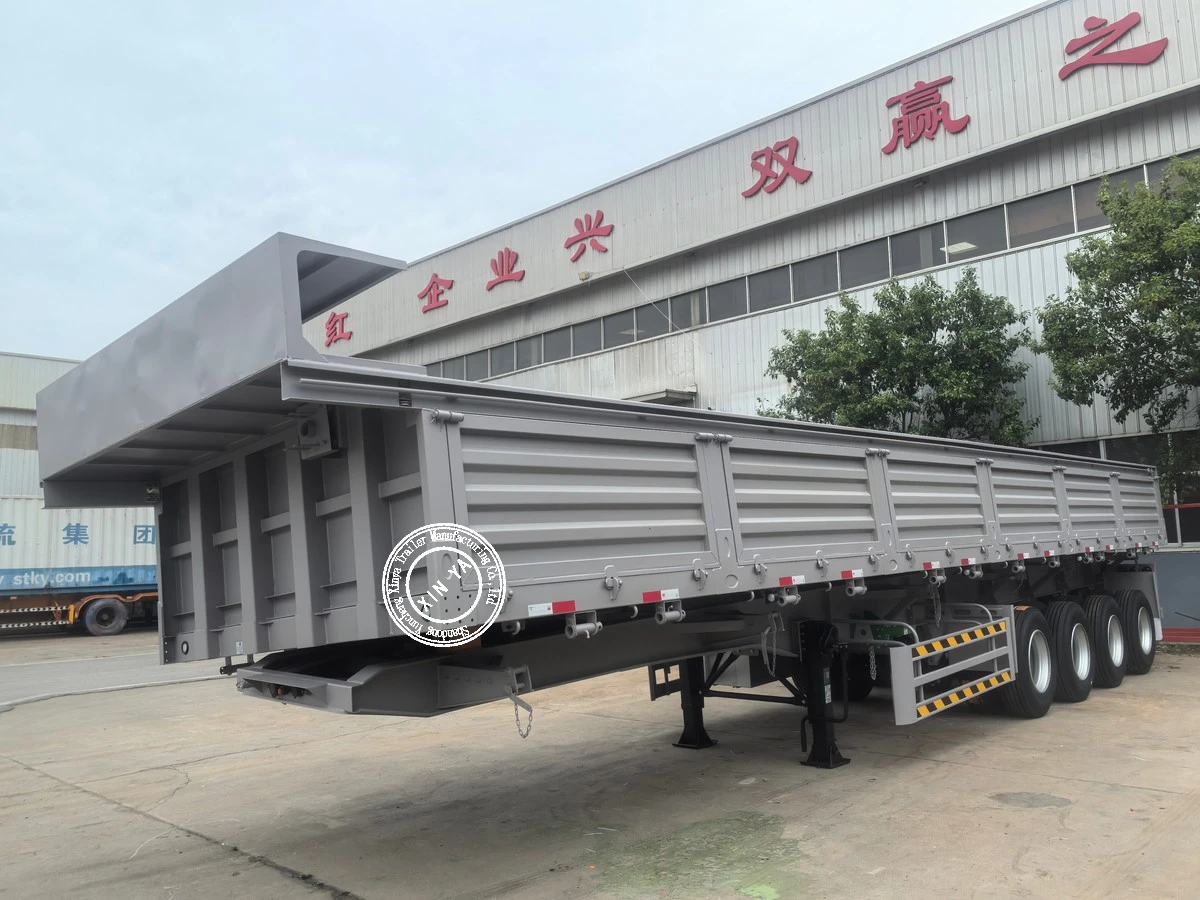

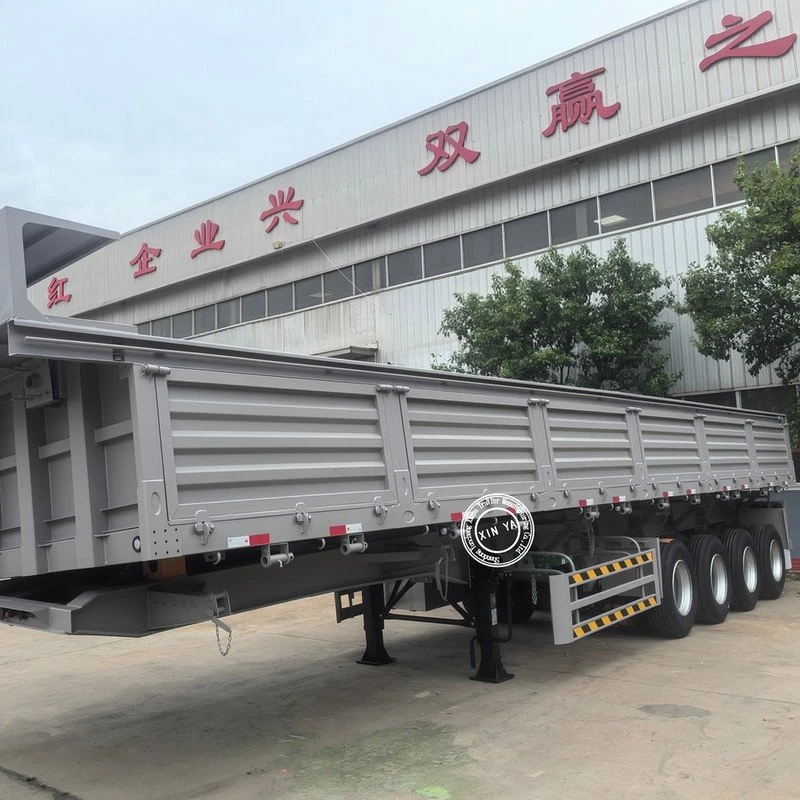

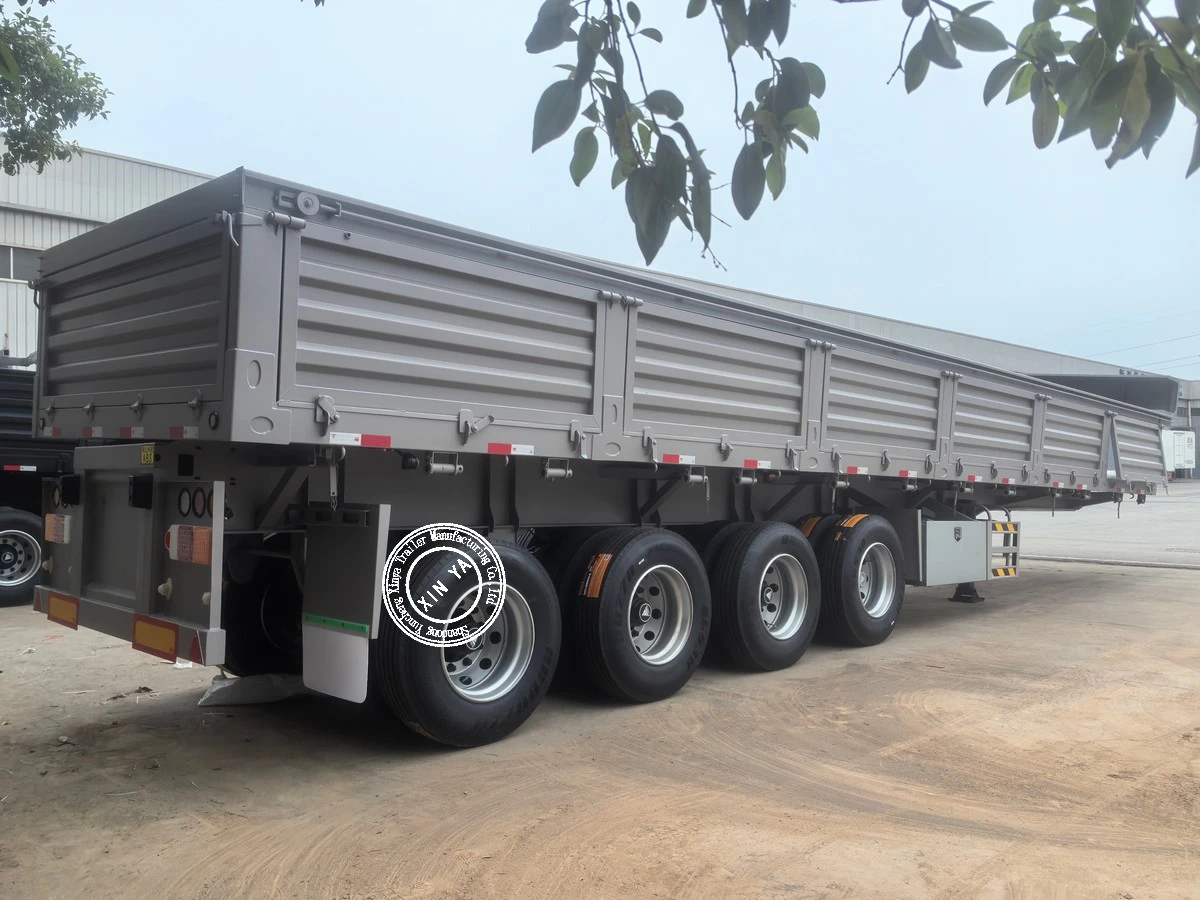

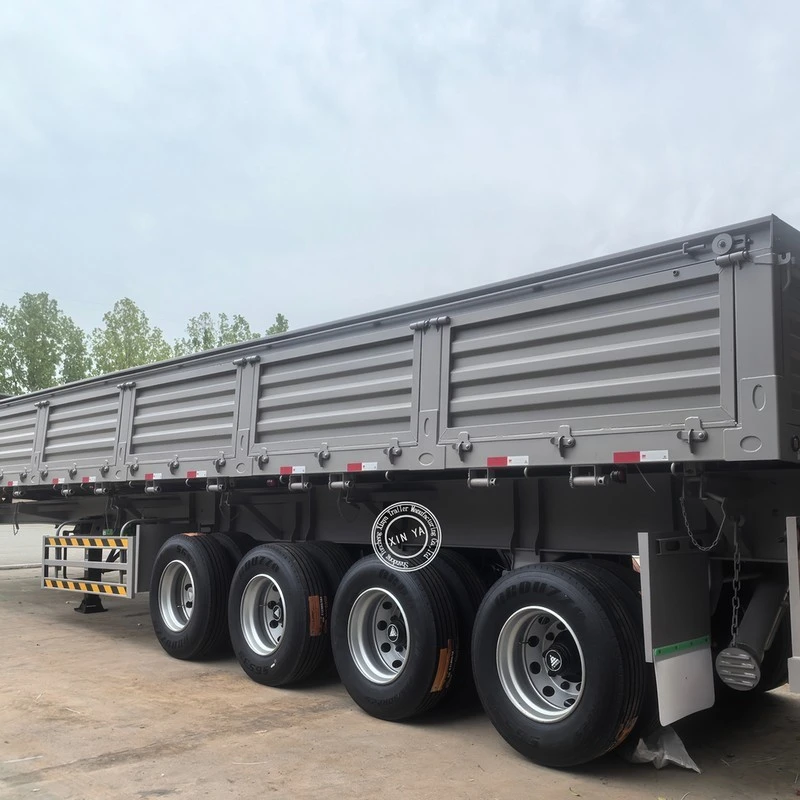

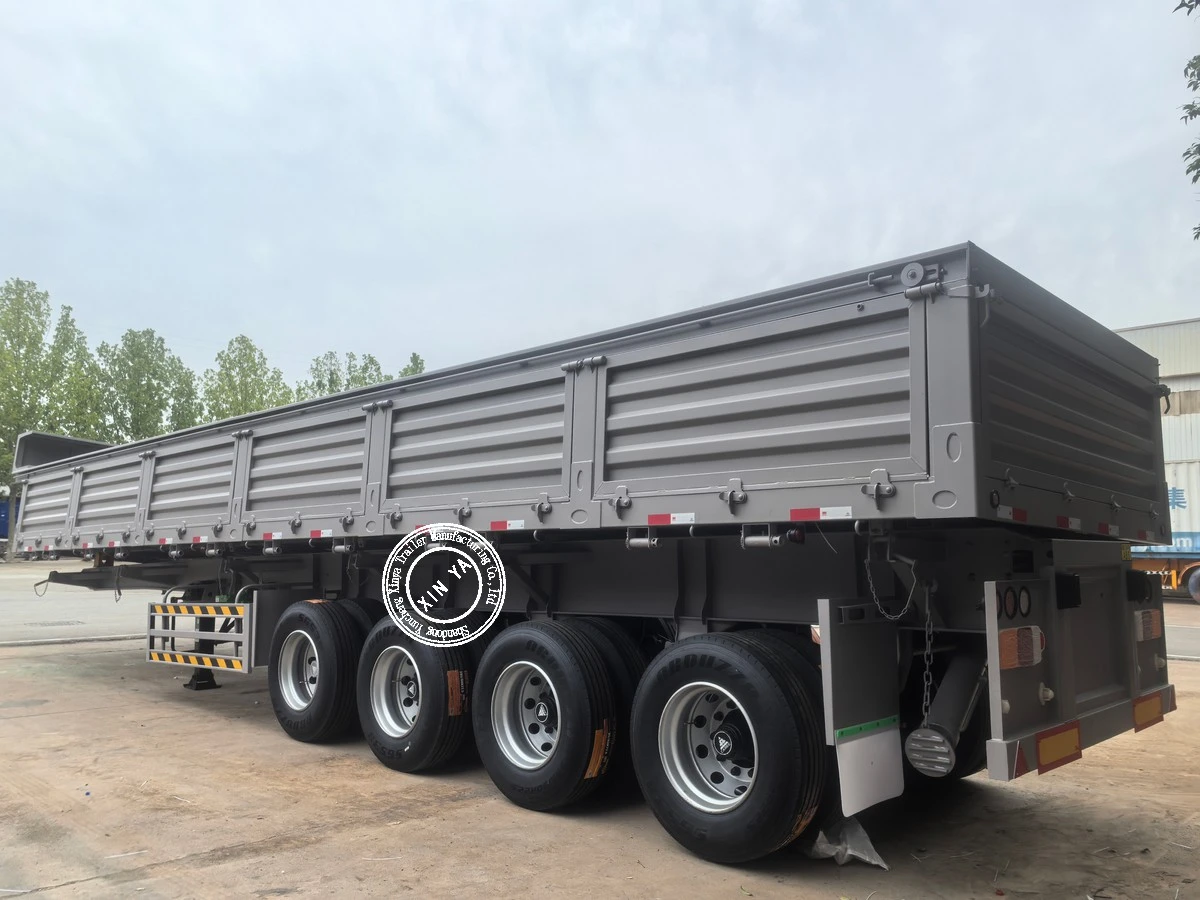

Hydraulic Tipper Truck Trailer
Size: 9000*2500*3400mm or customized
Tare weight: 10T
Payload: 35T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic tipper truck trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved hydraulic tipper truck trailer, welcome to get quotation from our factory.
Product Details
The hydraulic Tipper semi-trailer is made of sturdy and durable materials, using Q345/Q960 high-strength steel with thickened plates, wear-resistant and impact resistant, and has a long service life. Equipped with well-known hydraulic cylinders as standard, the lifting is smooth, the sealing is good, and the failure rate is low.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
9000*2500*3400mm |
|
Material |
Q345B high-strength steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
plateform |
2-3mm checker plate |
|
Cylinder Brand |
HYVA |
|
Tyre |
12R22.5 12PR,12+1spare tire |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Leaf spring / Air suspension |
|
Axle |
Brand: BPW/FUWA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our company was awarded the title of National High tech Enterprise in 2023, and our technological research and development strength was officially recognized; In 2024, it will be recognized as a provincial-level specialized, refined, unique, and new small and medium-sized enterprise, and become a benchmark in regional segmented fields; In 2025, selected as a national level technology-based small and medium-sized enterprise, expanding overseas markets, and continuously increasing export orders
Our Advantages
1.The side dump semi-trailer equipped with hydraulic system for quick unloading. The chassis and carriage of a dump semi-trailer are directly connected. Its manufacturing must adopt precise cutting structures and welding processes to ensure the strength and stability of the semi-trailer. Different dump trucks can carry goods ranging from 30 tons to 100 tons.
2. The side tipper semi-trailer is mainly composed of the semi-trailer chassis, trunk, braking system, hydraulic system, and pneumatic control system. The overall size of the vehicle and the brand of the driving equipment can be customized.
FAQ
1. What's the rated load capacity?
A: Normal load: 30-60 tons.
2.Can you supply spare parts?
A: Yes, genuine parts available all the time.
3. What's the warranty period?
A: 12 months or 50,000 km (whichever comes first)
