Wing Body Semi Trailer
Overall size(L*W*H)mm: 13570*2580*4100
Payload: 45T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of wing body semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved wing body semi trailer, welcome to get quotation from our factory.
Product Details

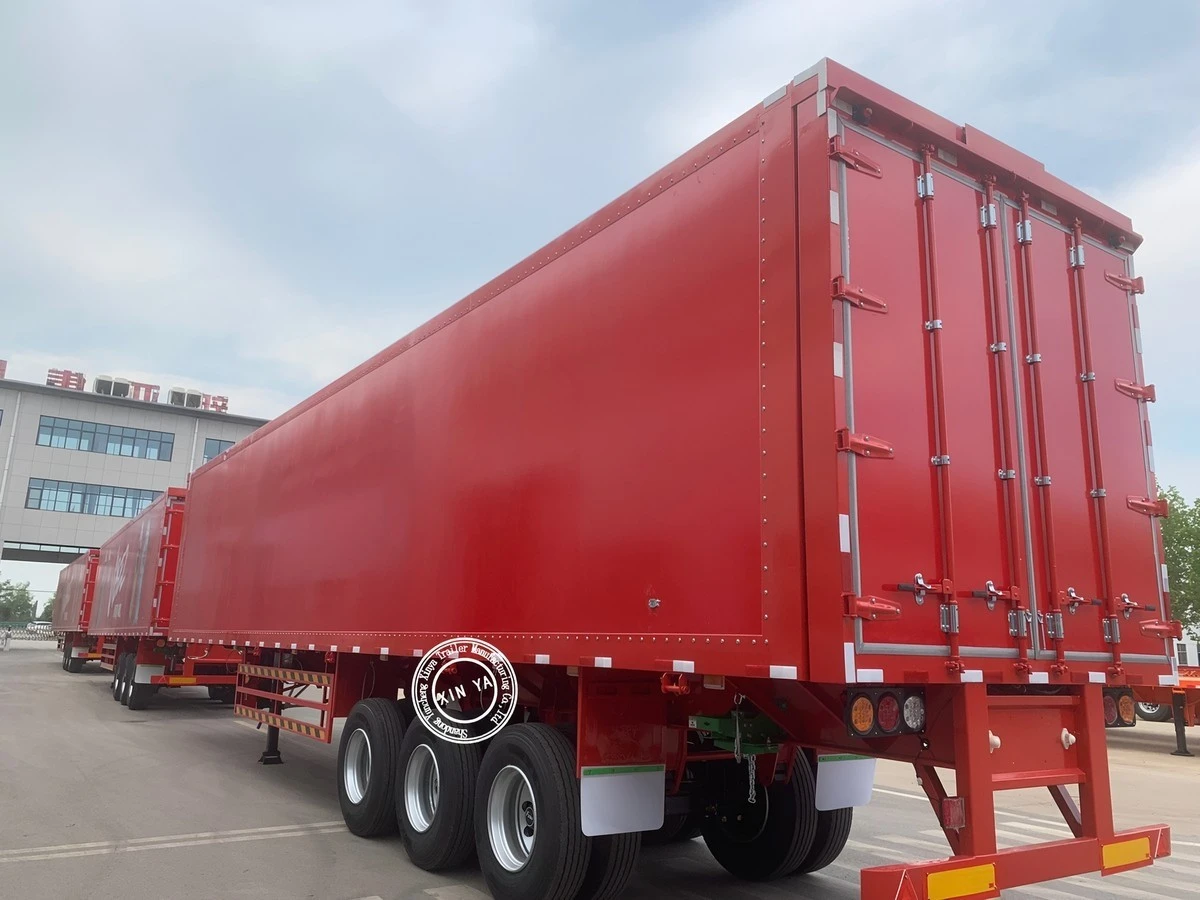

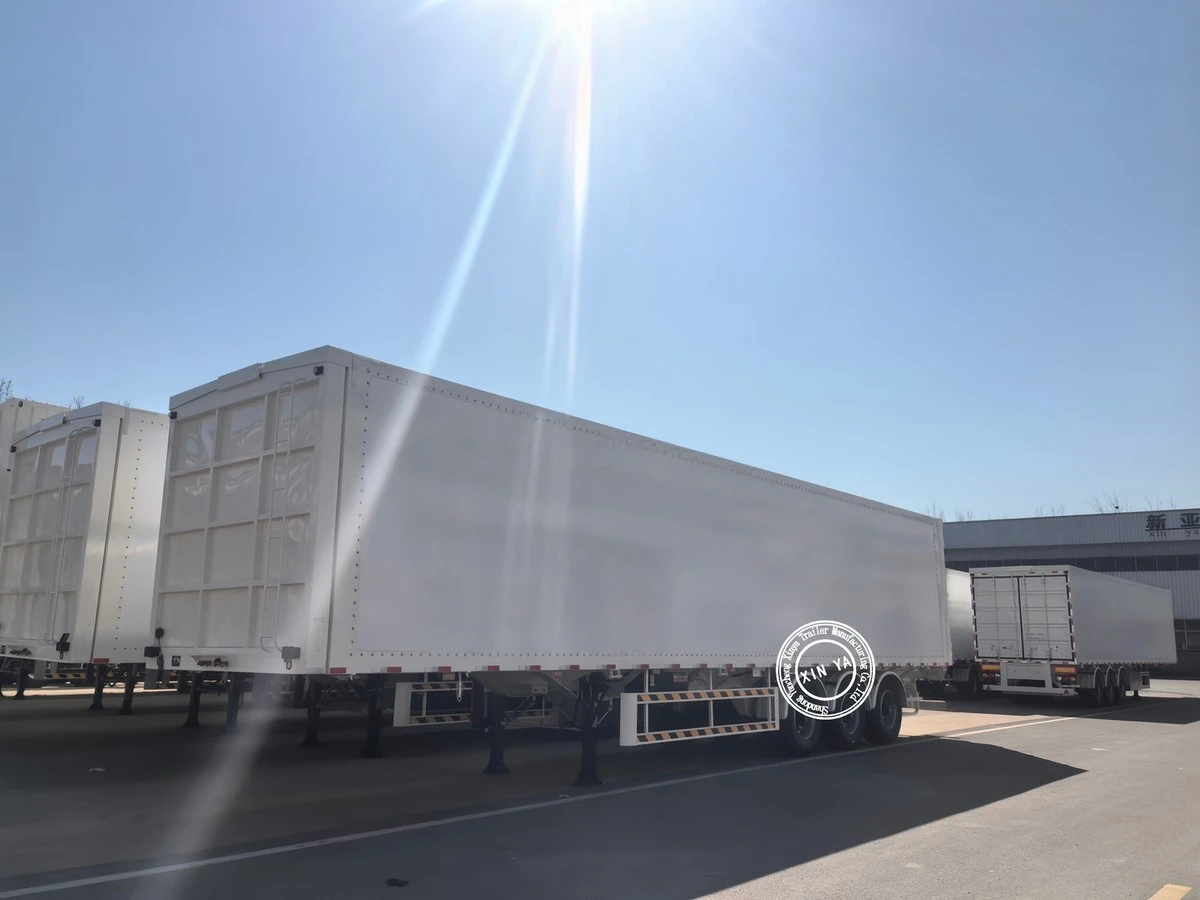

Wing opening van semi trailer is based on van semi trailer design and built with hydraulic opening wing box, which can transport bulk cargos more conveniently.
Product Parameters
|
Overall size(L*W*H)mm |
13570*2580*4100 |
|
Chassis Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
Van body |

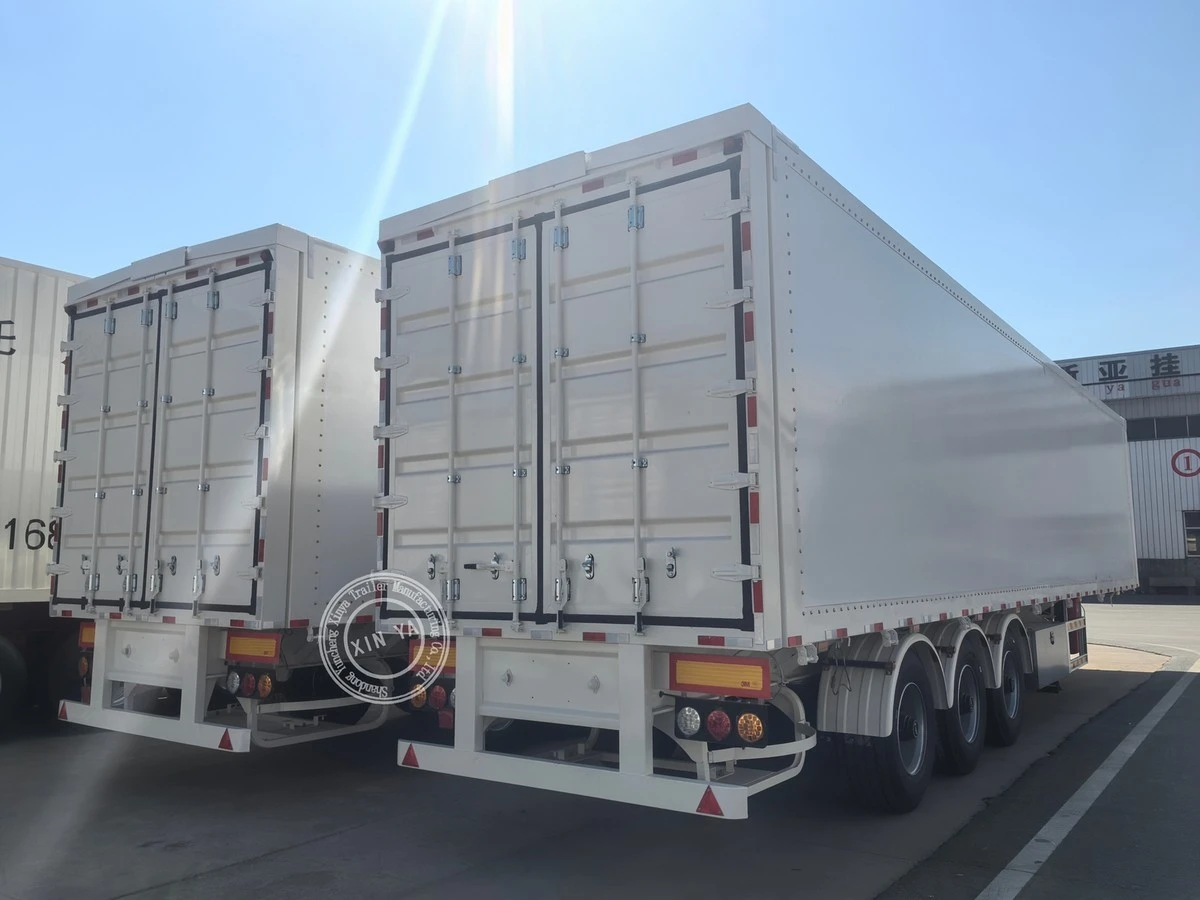

Van body material：T700 fabricated steel; Side plate thick 1mm; Inner height around:2400mm; Inner width around:2440-2450mm; Bottom steel checker plate :3mm; Four locking rods; Rear double door; The side wings are divided into upper and lower parts, with the lower part being a 600mm fence; |
|
Special requirements |
The van plates need to be disassemblable into pieces, stacked on the chassis to deliver by bulk vessel |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Mechanical/Air suspension |
|
Axle |
Capacity: 12T QTY: 3 units |
Our Company
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. mainly produces various specialized vehicles, such as low flatbed semi-trailer, flatbed semi-trailer, skeleton semi-trailer, cargo transport semi-trailer, oil tank semi-trailer, bulk cement semi-trailer, dump semi-trailer, etc In addition, our semi-trailer parts factory mainly produces semi-trailer axles, mechanical suspensions, air suspensions, bogie suspensions, and support legs.
Our Advantages

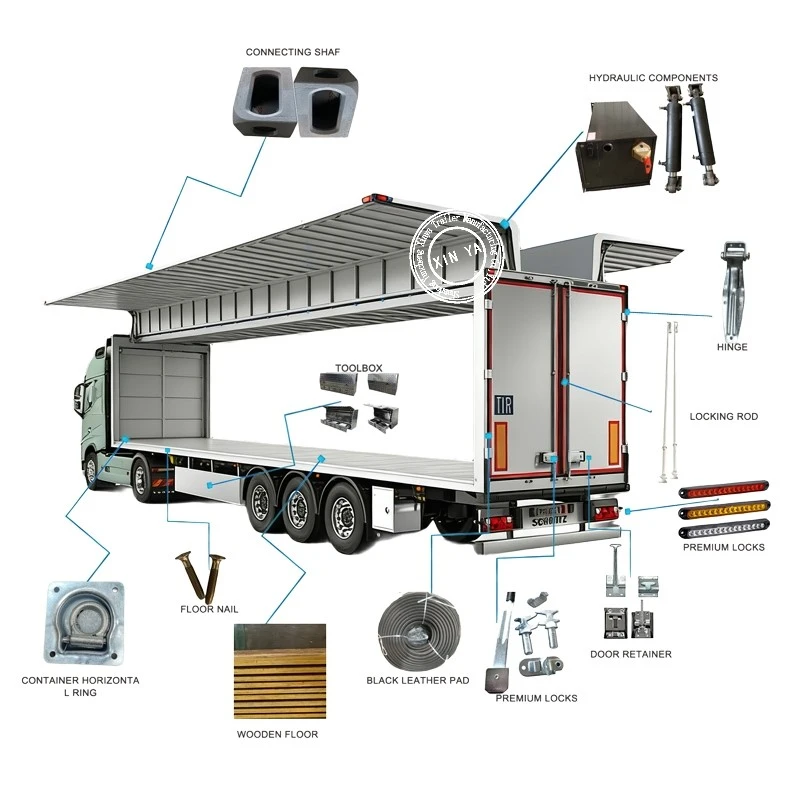

1.Wing-body semi-trailer is a specialized vehicle capable of opening side wings through power springs, manual devices, or hydraulic systems. It is also known as a wing-open box truck trailer or spread-wing truck trailer. This type of vehicle is an improved version of a standard box truck, with a roof, front panel, and rear door structure similar to a corrugated steel box truck. However, its sides consist of flip panels, upper side panels, and lower side panels.

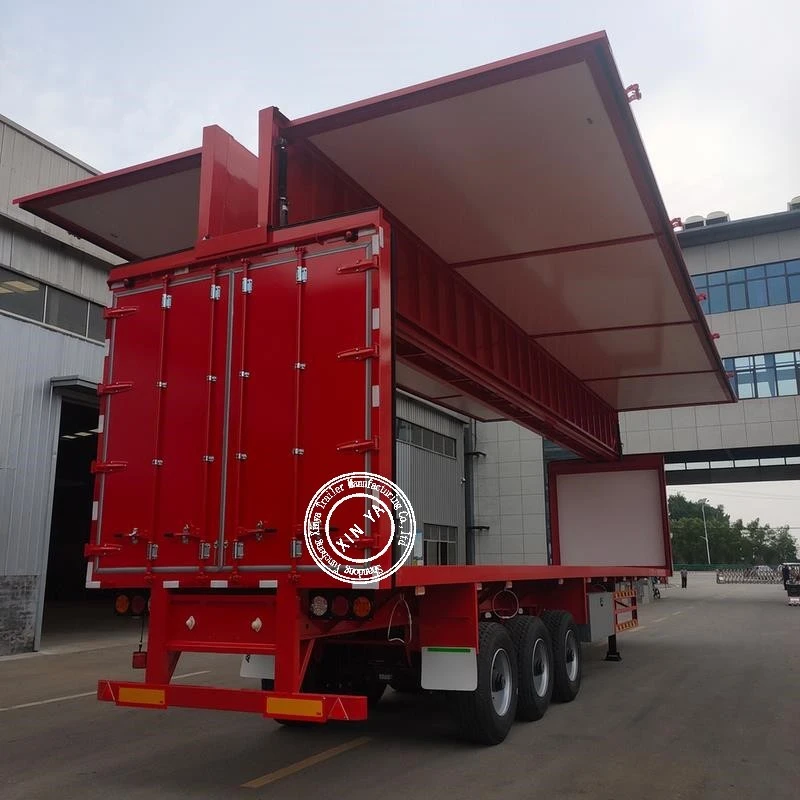

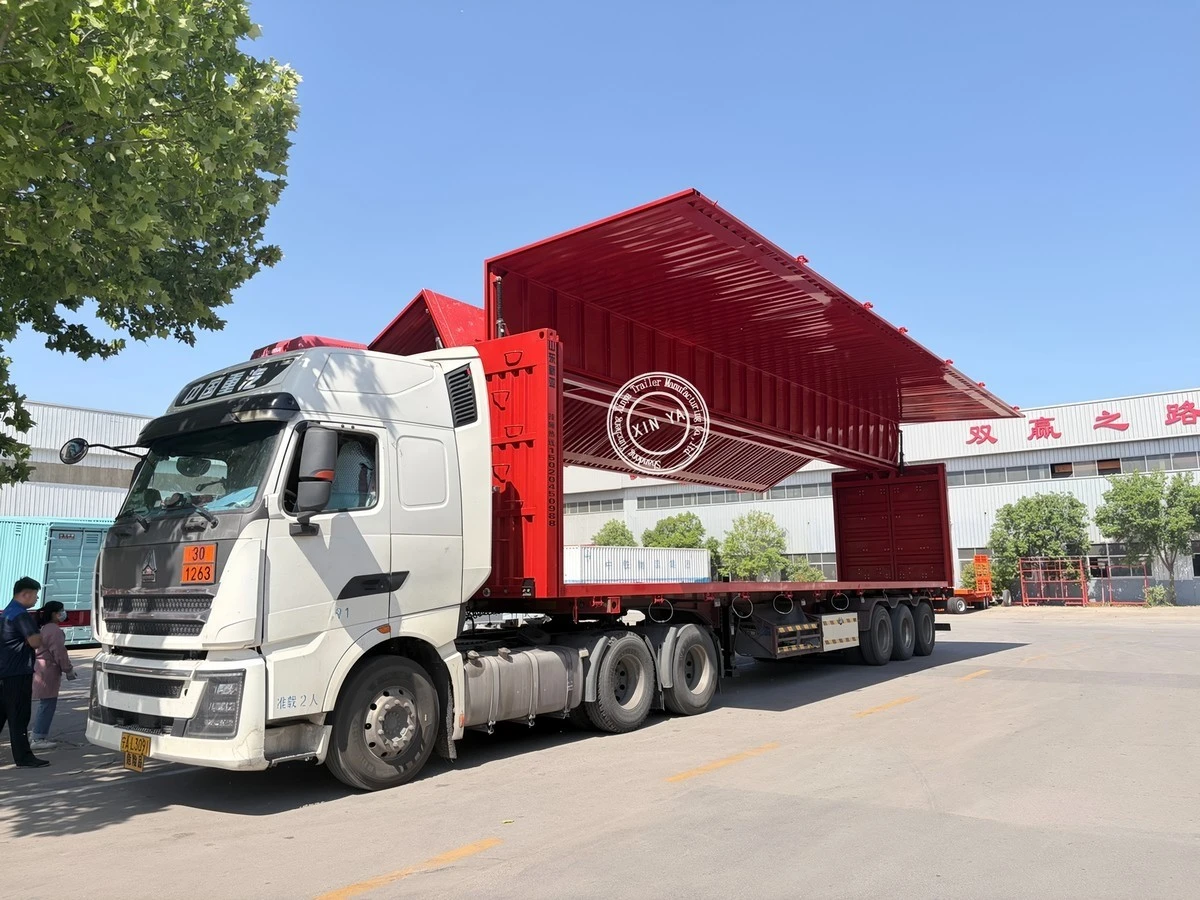

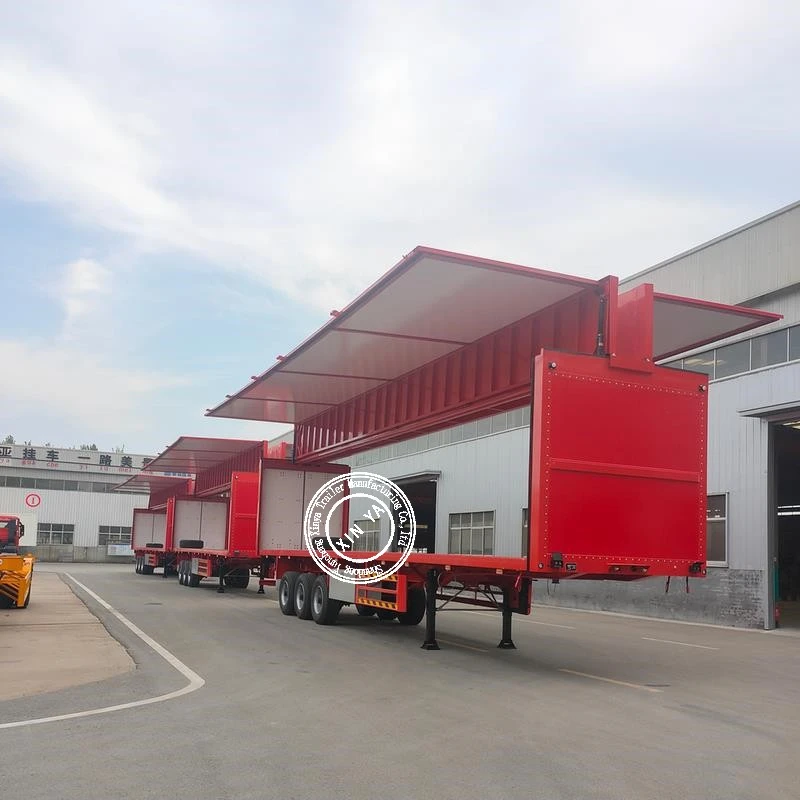

2.The electro-hydraulic integrated lifting device enables the two wings to lift up to 90 degrees, making it easy to quickly load and unload goods, especially suitable for heavy equipment, clothing and other enterprises.
3.After the side wings are closed, the cabin is fully enclosed, providing rain and moisture resistance.
FAQ
Q: What's the lead time for orders?
A: This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized size?
A: Absolutely! We offer tailored attachments.
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
