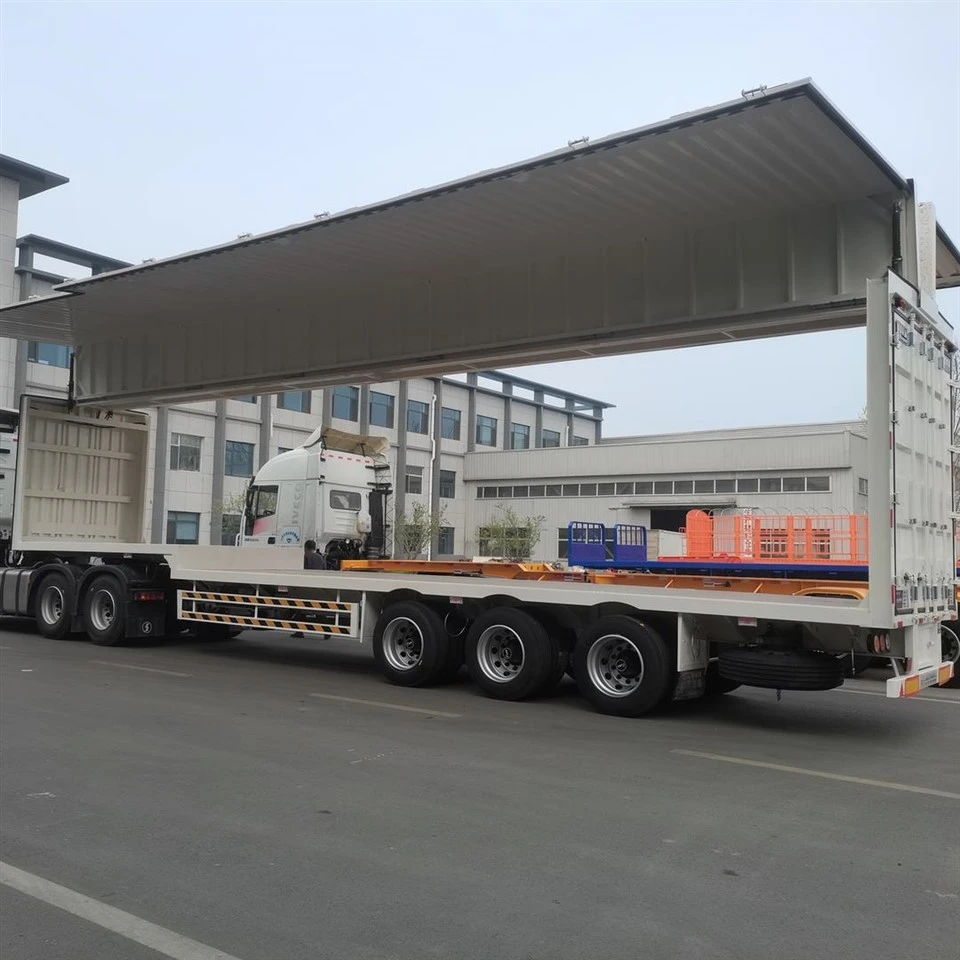

Wing-open Van Semi Trailer
Size: 13570*2580*4100 or customized
Tare weight: 7T
Payload: 45T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of wing-open van semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved wing-open van semi trailer, welcome to get quotation from our factory.
Product Details

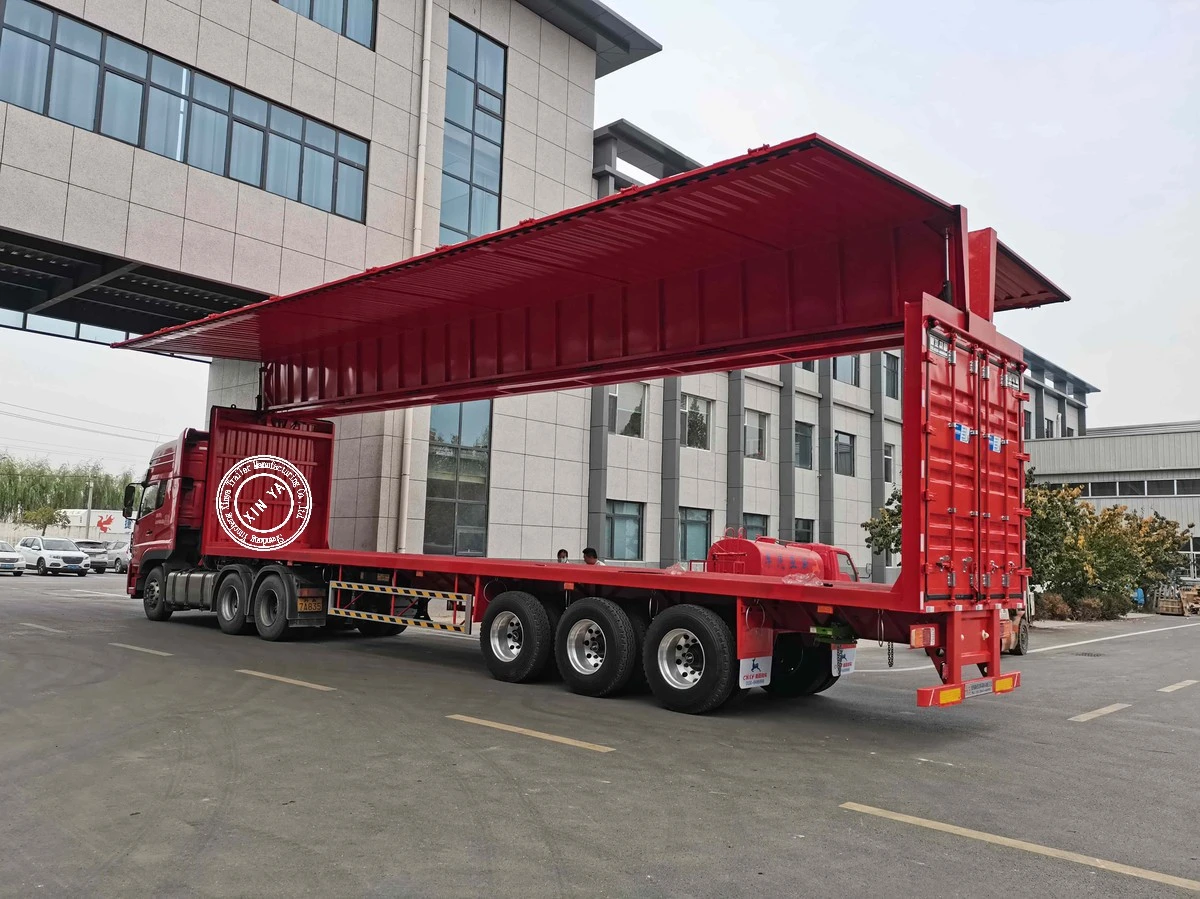

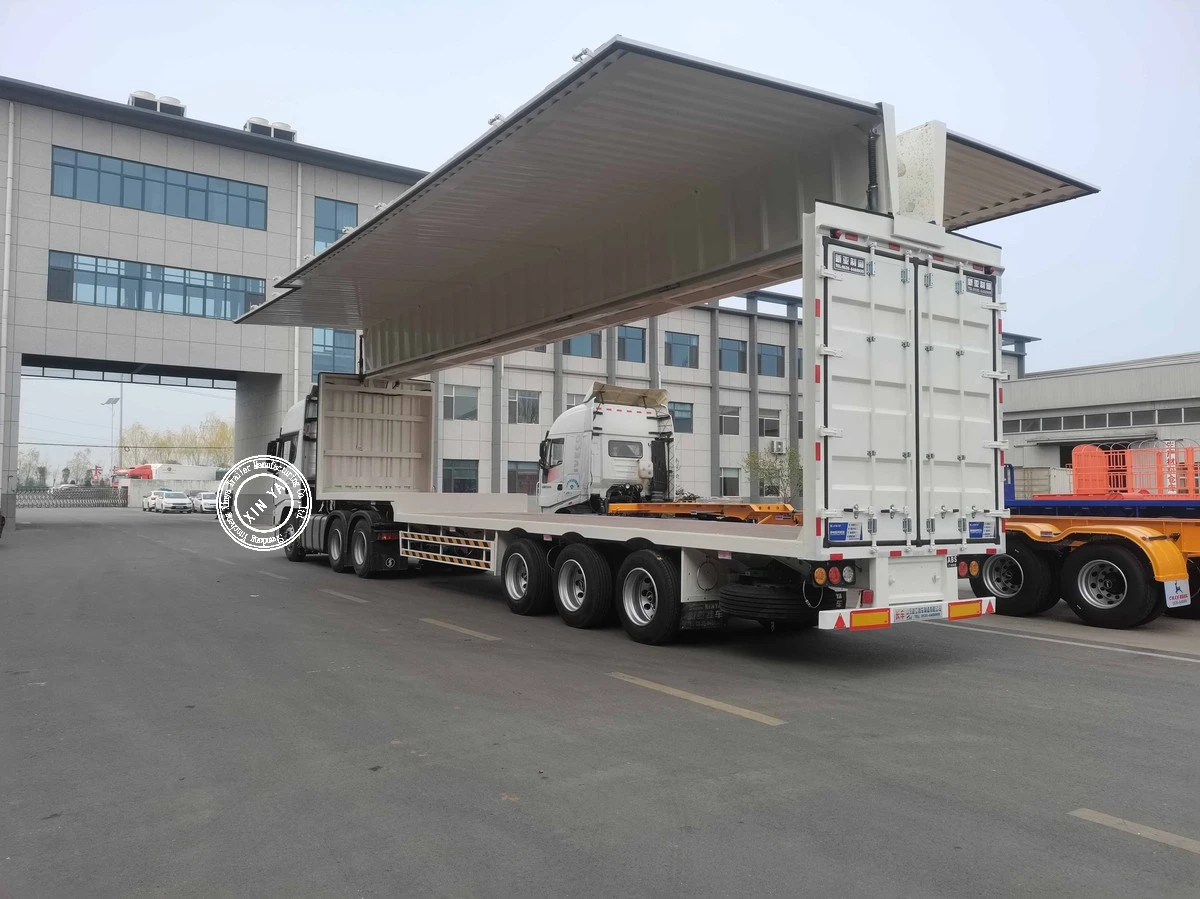

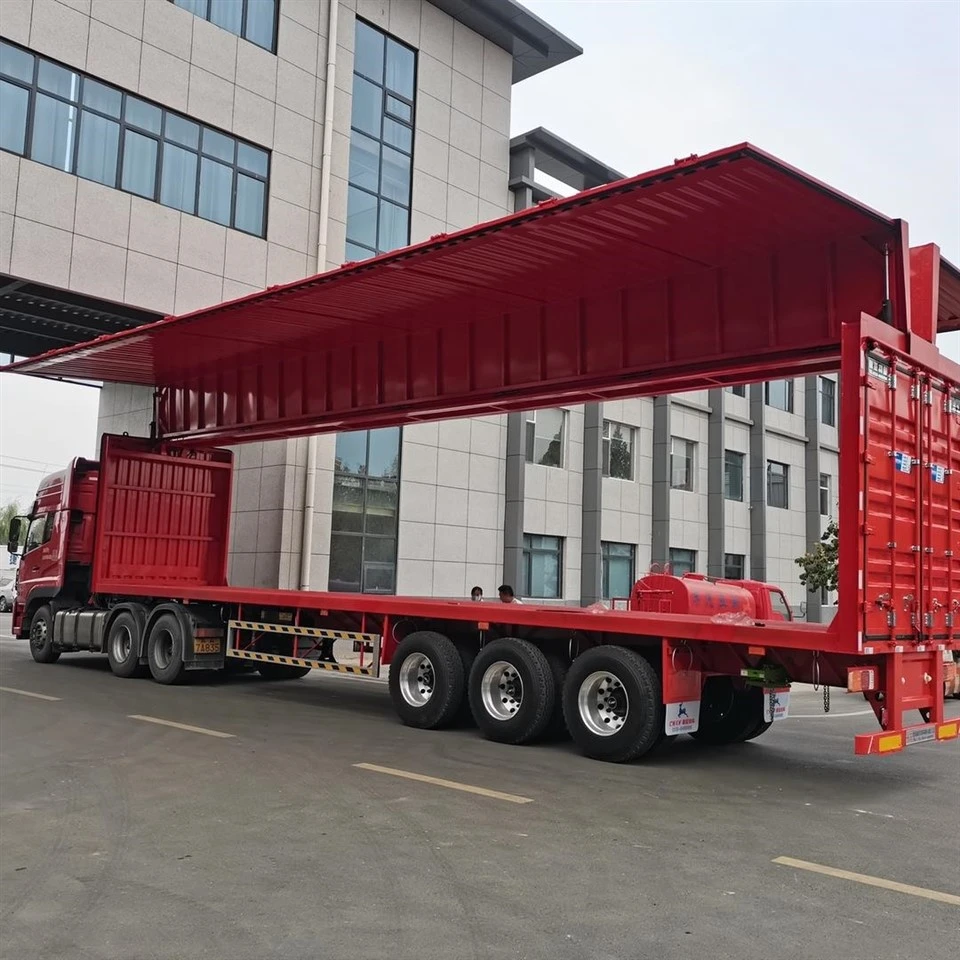

3 Axle Wing Van Semi Trailer There are no pillars blocking the side of the vehicle, making it suitable for fast turnover of whole pallets and boxes of goods. It is the preferred choice for logistics parks, dedicated lines, e-commerce warehouses, and less than truckload shipments.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
13570*2580*4100 |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
Van body |
Van body material：T700 fabricated steel; Side plate thick 1mm; Inner height around:2400mm; Inner width around:2440-2450mm; Bottom steel checker plate :3mm; Four locking rods; Rear double door; The side wings are divided into upper and lower parts, with the lower part being a 600mm fence; |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Mechanical/Air suspension |
|
Axle |
Brand: BPW Capacity: 12T QTY: 3 units |

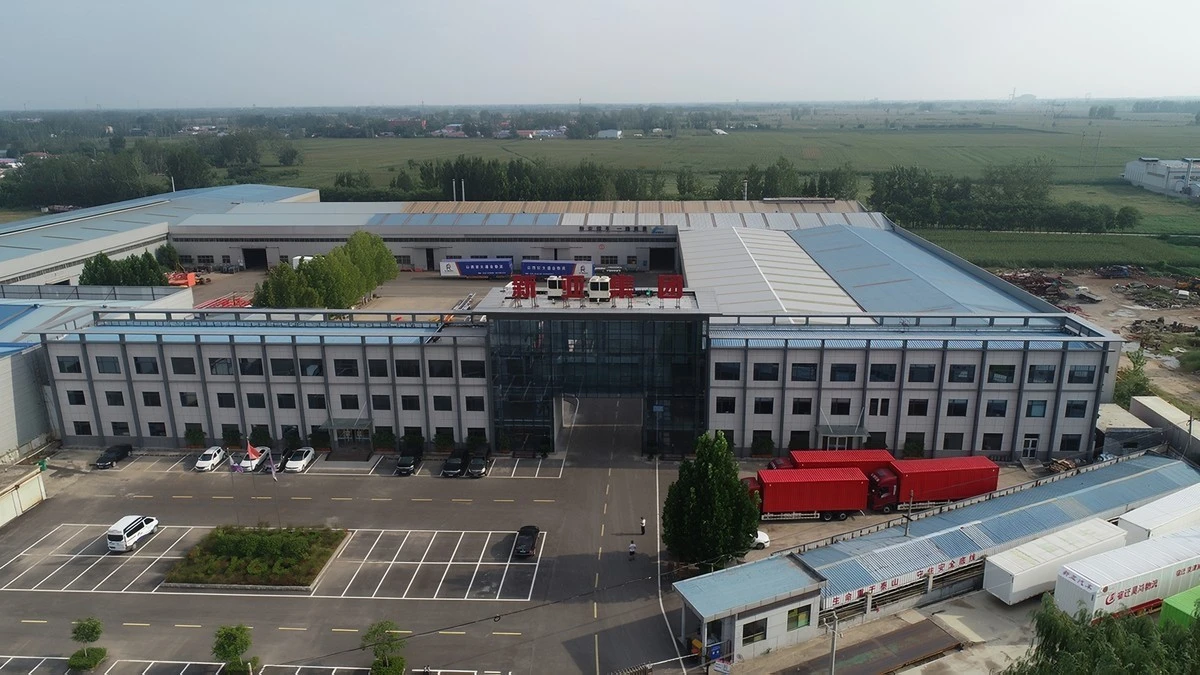

Our Company
Our company is a motor vehicle access enterprise announced by the Ministry of Industry and Information Technology, and has the qualifications for complete vehicle production and license plate compliance; National high-tech enterprises, technology-based small and medium-sized enterprises, provincial-level specialized and innovative enterprises, with high industry recognition.
Our Advantages
1. Its loading and unloading efficiency is extremely high, with the left and right wings flipping upwards as a whole, and the side is 100% transparent, which is different from side curtain sliding and ordinary box cars that only have a tailgate for entry and exit.
2. Flying wing box semi-trailer is a type of semi-trailer designed specifically for the transportation of goods.
3. Its design inspiration comes from bird wings, with a unique wingspan structure that can provide greater space and better stability for cargo transportation
FAQ
1.Can you arrange shipment for customer?
Yes, very good experience in shipping, we work with the most reliable shipping companies in the world.
2.Do you have after-sale service?
Yes, Good after-sale service, handling the customer complaint and solve problem for customers.
3.Do you have a export licence?
Yes.
