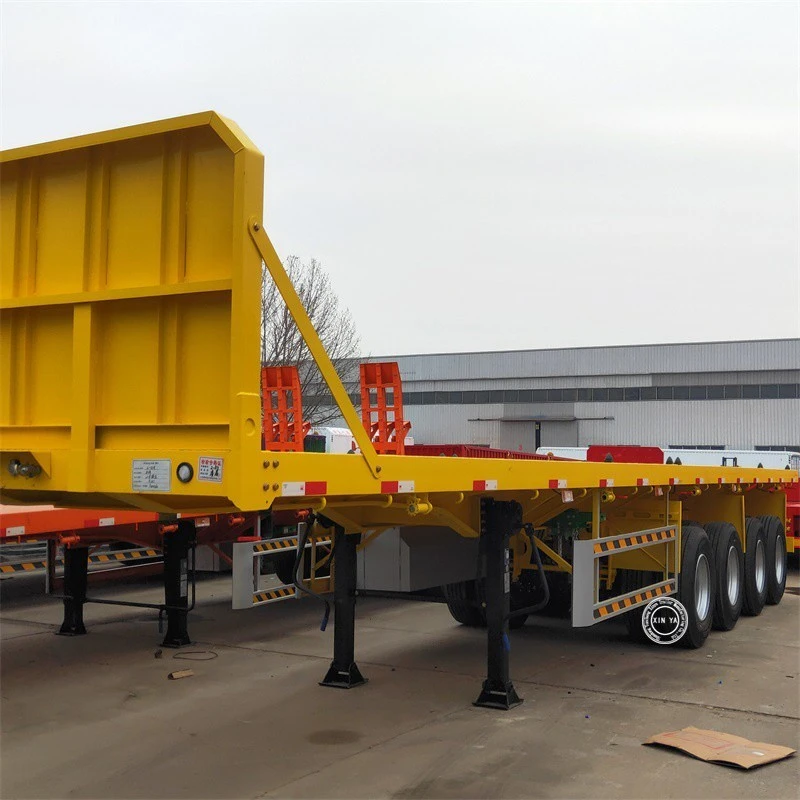

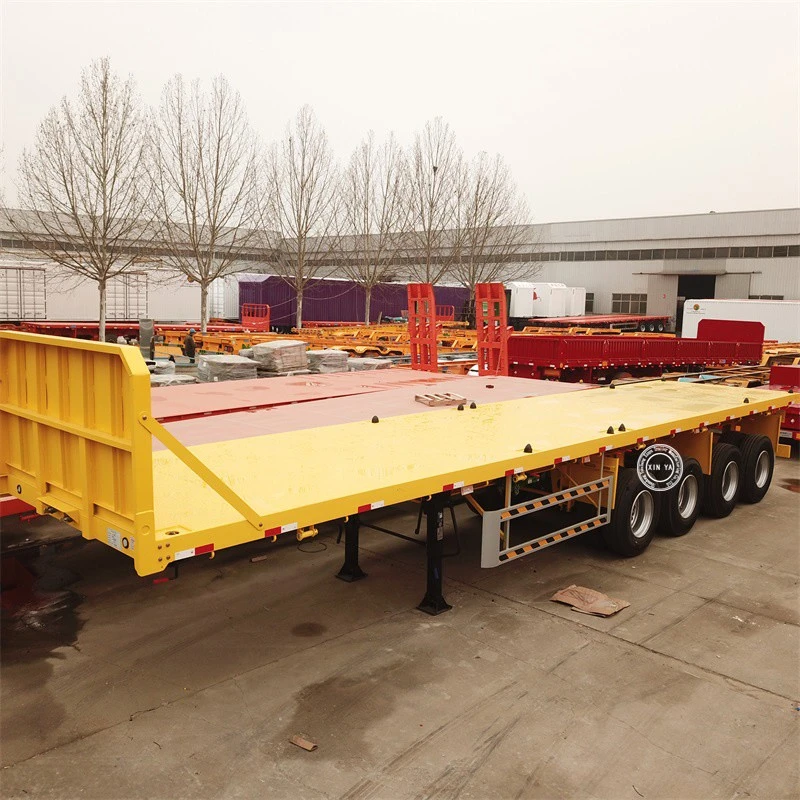

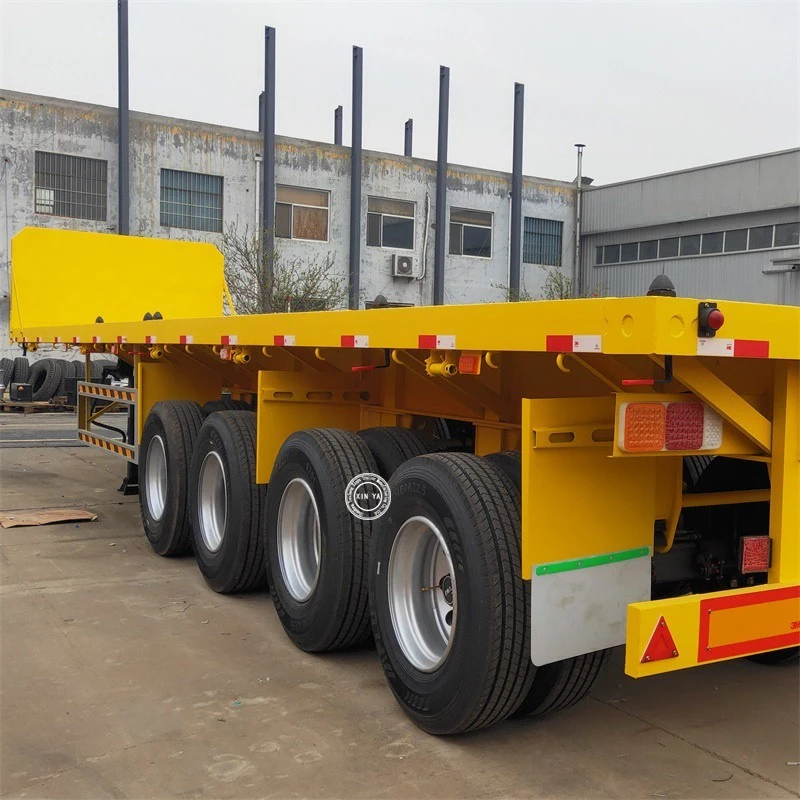

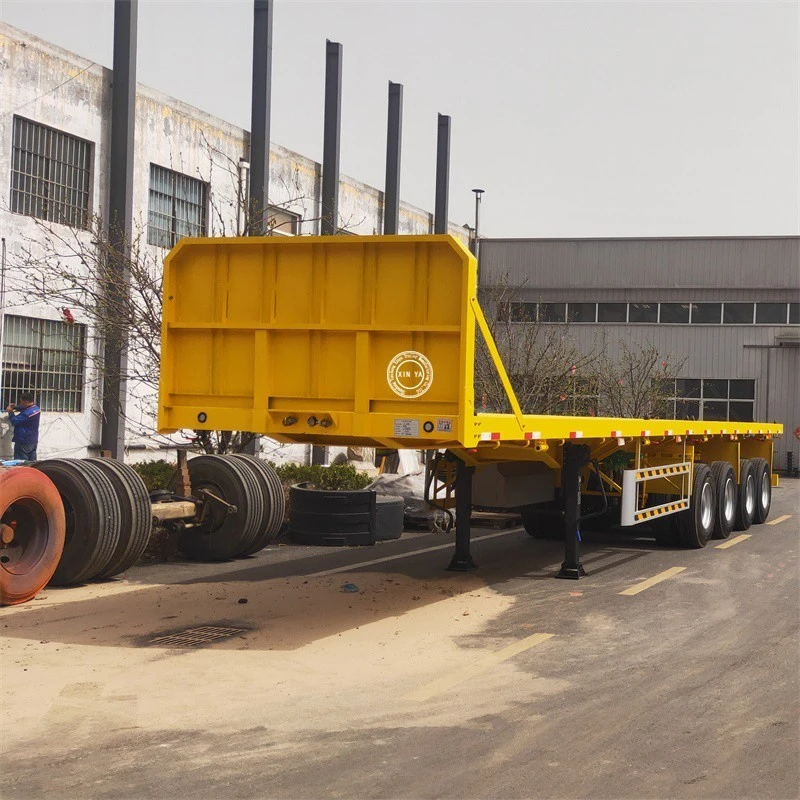

Heavy-duty Flatbed Semi-trailer
Heavy duty four axle flatbed trailer with front wall, Removable upright posts are available as an option. The trailer is fitted with 12 container twist locks to ensure cargo safety.
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of heavy-duty flatbed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved heavy-duty flatbed semi-trailer, welcome to get quotation from our factory.
Product Details
This heavy-duty flatbed semi-trailer is made of Q345B / Q355B high-strength steel. It resists bending effectively and features an extended service life.
We supply trailers with rated loads ranging from 30 tons to 80 tons.
Product Parameters
|
Overall size(L*W*H)mm |
12400*2500*1510 |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
Side beam |
14#C type; Q235 |
|
Cross beam |
8/10# C type; Q235 |
|
plateform |
3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension or Air suspension(China brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 4 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
Tyre |
Brand: chengshan/Triangle; Type: 12R22.5-18PR; double mounted; QTY: 16 units |
Our Company
Our Advantages
1.We use internationally renowned brands for accessories such as JOST landing gear, FUWA/BPW axle, and WABCO brake system
2.Surface Treatment: The trailer is coated with 1 layer of anti-corrosion primer and 2 layers of top paint. It retains gloss and color for 3 years under normal use, excluding ordinary wear and tear.
3.Widely applicable, with low daily maintenance costs
FAQ
1.What steel is used for producing semi trailers?
We use Q345B Q355B and T700 high-strength steel, which are not easily bent
2. Which welding process do you use?
Mainly using the welded by automatic merged accr process, welding is integrated into one piece
3.What is the load range of a flatbed semi-trailer?
We can customize the load range of 30-80 tons according to the customer's needs, length, and size
